Abandoned & Little-Known Airfields:ia
Western Iowa
© 2003, © 2008 by Paul Freeman. Revised 7/6/08.
(Original) Ames Municipal Airport / Wearth Airport (added 12/26/05)
Council Bluffs Airport (revised 3/22/08) - Linby NOLF (revised 7/6/08)
____________________________________________________
(Original) Ames Municipal Airport / Wearth Airport, Ames, IA
42 North / 93.61 West (North of Des Moines, IA)
The original Ames Municipal Airport, as depicted on the June 1937 Des Moines Sectional Chart (courtesy of Chris Kennedy).
The first airport for the town of Ames was located south of the town,
on the east side of Duff Avenue (Route 69).
The date of construction of the original Ames Airport has not been determined.
The earliest reference to the Ames Airport which has been located
was in The Airport Directory Company's 1933 Airports Directory (courtesy of Chris Kennedy).
It described Ames as consisting of a 1,320' square sod field,
with a hangar marked with “Ames” on the roof.
The earliest depiction which has been located of the Ames Airport
was on the June 1937 Des Moines Sectional Chart (courtesy of Chris Kennedy).
It depicted Ames as a municipal/commercial field.
A 1937-39 USDA aerial photo of the Ames Airport (from the ISU GIS system, courtesy of Ron Plante).
It depicted the field as having 3 unpaved runways, oriented north/south, east/west, and northwest/southeast.
A cluster of small buildings was visible along the northwest corner of the field.
Ames Airport was listed in The Airport Directory Company's 1938 Airports Directory (according to Chris Kennedy).
The Ames Airport evidently was closed (for reasons unknown) at some point between 1938-41,
as no airport in Ames was listed in The Airport Directory Company's 1941 Airports Directory (according to Chris Kennedy).
At some point between 1938-41, the airfield at this location was evidently reopened as “Wearth” Airport,
as that is how it was labeled on the May 1941 Des Moines Sectional Chart (courtesy of Chris Kennedy).
The last depiction which has been located of the Wearth Airport
was on the June 1942 Dubuque Sectional Chart (courtesy of Chris Kennedy).
The Wearth Airport was evidently replaced (for reasons unknown) at some point between 1943-43
by the larger Ames Airport on the opposite (western) side of Duff Avenue,
as only the new Ames Airport on the west side of the road
was depicted on the August 1943 Dubuque Sectional Chart (according to Chris Kennedy).
A 1970s USDA aerial photo (from the ISU GIS system)
showed that buildings had covered the western portion of the original Ames Airport site,
but the eastern portion was still open.
A 1990 USGS aerial photo of the site of Ames/Wearth Airport showed that the majority of the site had been covered by housing,
but it appeared as if at least one of the 1930s-vintage airport buildings remained standing,
on the northwest corner of the site.
The majority of the site has been covered by housing,
but it appears as if at least one of the 1930s-vintage airport buildings remains standing,
on the northwest corner of the site.
The site of the Ames/Wearth Airport is located northeast of the intersection of Route 69 & Crystal Street.
Thanks to Chris Kennedy for pointing out this airfield.
____________________________________________________
Council Bluffs Airport, Council Bluffs, IA
41.22 North / 95.84 West (Southeast of Omaha, NE)
The Council Bluffs “Municipal Airport”, as depicted on a circa 1930s map
in the Public Works Department at Council Bluffs City Hall (courtesy of Michael Sciortino).
According to the website for the present-day Council Bluffs Airport,
in 1929 the Aero Club negotiated an option to buy a 200-acre site from the Grenville Dodge estate,
to replace a previous airport located a mile to the west.
The site had been inspected by Government Airport Specialist, Marshall Hoppin,
who approved the location due to the drainage ability of the soil, its potential for grass,
and the availability of bus & street car service, water & power, in addition to a hard surface road planned for construction.
On June 29, 1929, the City Council adopted a resolution approving construction of a municipal airport.
It approved the tentative location in Section 7, Township 74, Range 43, in Pottawattamie County as requested by the Aero Club.
The vote was unanimous.
Approval of plans & specifications for the Council Bluffs Airport by the Iowa Board of Railroad Commissioners
was filed with the Council on July 8, 1929.
The Council took the first step on January 27, 1930,
when it authorized by resolution the execution of airport certificates to the estates of N.P. & G.M. Dodge
in the amount of $40,000 for property purchased by the City for its airport.
The Action was followed by the passage of an ordinance on February 10, 1930,
providing for the creation of a Municipal Airport Commission.
The City Council adopted a resolution for airport improvements on March 24, 1930, and opened bids that same date.
All bids were subsequently referred to the city engineer & the Airport Commission
for review & recommendation to Council.
Those recommendations came on April 1,
and the Council authorized a contract with Boyne Construction Company
for complete drainage with slag backfill, grading and construction of runways.
The runway, 2,600' long & 200' wide, would be constructed oriented northwest/southeast
with an option for the construction of a northeast/southwest runway.
Also authorized was a contract with Flynn Electric Company for a complete lighting system.
During the summer of 1932 the Council Bluffs Municipal Airport was opened.
The earliest directory listing of the Council Bluffs Airport which has been located
was in The Airport Directory Company's 1933 Airports Directory (courtesy of Chris Kennedy).
It described the Council Bluffs Airport as consisting of a rectangular 200 acre sod field
with 2 cindered runways measuring 2,600' north/south & 1,500' northwest/southeast.
A hangar was said to have “Council Bluffs” marked on the roof.
The earliest depiction of the Council Bluffs Airport which has been located
was on a circa 1930s map (courtesy of Michael Sciortino)
which hung on the wall (as of 2006) in the Public Works Department at Council Bluffs City Hall.
It depicted the “Municipal Airport” as a rectangular plot of land,
with 3 buildings (hangars?) in the northwest corner.
The earliest aeronautical chart depiction which has been located of the Council Bluffs Airport
was on a 1936-37 Des Moines Sectional Chart (courtesy of Chris Kennedy).
It depicted Council Bluffs as a municipal/commercial field.
A 1937-39 USDA aerial photo of the Council Bluffs Airport (from the ISU GIS system).
It depicted the field as having 3 unpaved runways, oriented north/south, northeast/southwest, and northwest/southeast.
A cluster of hangars was visible along the west side, alongside of which were visible several planes.
With the outbreak of WW2, the Council received a telegram on December 8, 1941
from Army Lt. Col. D.F. Hunter in which he requested that properly authorized police officers
be stationed at the airport to ground all planes except those on government duty
and that the officers remain there 24 hours / day.
The mayor & chief of police were instructed to comply.
The future of the airport became uncertain.
By February 1942, many smaller airports in Southwest Iowa had discontinued operations
because they lacked the financial backing to meet the Civil Aeronautics Administration's regulations.
Planes based at some of them were flown to the Council Bluffs airport for operation
since the Council Bluffs field was probably second in the State to receive government approval.
Council Bluffs had complied with regulations that airports for private flying either be approved or abandoned.
Pilots were required to register on the field & be cleared by a clearance officer before making any kind of flight.
A 24-hour guard was maintained & the airport sufficiently lighted.
Because the Airport remained dry, while Eppley Airfield was covered with water during a major flood,
50 U.S. Army cadets stationed at Creighton University began receiving their flight training at Council Bluffs.
Over 30 planes were now based at the Council Bluffs field.
In addition, the Civil Air Patrol Courier Service operated 3 flights each day from the field.
The April 1944 US Army/Navy Directory of Airfields (courtesy of Ken Mercer)
described Council Bluffs Airport as having a 3,800' runway.
On November 13, 1945, the Council took a series of steps to insure the construction of a hangar.
By April 14, 1947, the Council was faced with their own flood problem.
The Airport Commission requested the City take immediate action to correct flood conditions at the airport.
Flood conditions were a result of a break in the dike of Mosquito Creek drainage ditch, which occurred in June, 1946.
The Chamber of Commerce also wrote to the City Council, asking that conditions at the airport be corrected.
A petition bearing 236 signatures was received.
The Council subsequently directed the Airport Commission to develop corrective plans
and submit them to the city attorney & city engineer.
At the close of 1947, the Council received copies of the Airport Development Plan
for the Omaha-Council Bluffs metropolitan area.
The plan had been previously approved by the City Aeronautics Administration,
the mayors of cities & the chairman of the Village Board, of Papillion, Nebraska.
The Council Bluffs Airport, as depicted on a 1948 USAF Target Complex Chart (courtesy of Chris Kennedy).
The airfield layout of Council Bluffs Municipal,
as depicted in the 1948 IA Airport Directory (courtesy of Chris Kennedy).
The directory depicted Council Bluffs Municipal as having 3 turf runways,
with the longest being the 3,755' Runway 12/30.
Several hangars were depicted at the northwest corner of the field.
The operators were listed as Aero-Marine Inc. & Pollitt Aircraft,
and the manager was listed as Donald Bowen.
An aerial view looking east at Council Bluffs Municipal (Pottawattamie County),
from the 1952 IA Airport Directory (courtesy of Chris Kennedy).
The directory depicted Council Bluffs Municipal as having 3 turf runways,
with the longest being the 3,755' northwest/southeast strip.
Several hangars were depicted at the northwest corner of the field.
The operators were listed as McCandless Flying Service & Pollitt Aircraft,
and the manager was listed as Harry McCandless.
The 1962 AOPA Airport Directory described Council Bluffs Airport
as having 3 turf runways, with the longest being the 3,755' Runway 13/31.
The operator was listed as McCandless Flying Service.
The Aerodromes table on the 1965 Des Moines Sectional Chart (courtesy of Chris Kennedy)
described Council Bluffs Municipal Airport as having 4 runways,
with the longest being a 3,755' "cinders & turf" runway.

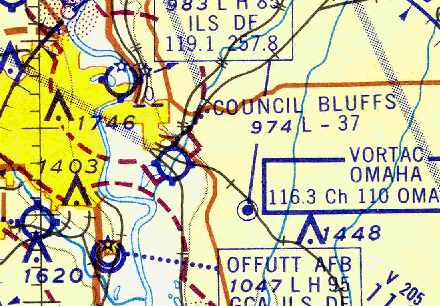

The last chart depiction which has been located of the original Council Bluffs Airport as an active airfield
was on the September 1966 Platte River World Aeronautical Chart (courtesy of Chris Kennedy).
It depicted the field as having a 3,700' unpaved runway.
According to Dick Davis, “The last plane to land at the old [Council Bluffs] airport
was a DC-6 that was bound for Omaha's Eppley Airport 9 miles Northwest in bad weather & mistook Council Bluffs.
The next day launch was also colorful.”
At some point between 1966-68,
the original Council Bluffs Airport was replaced by a larger Council Bluffs Municipal Airport,
a few miles to the northeast,
as the original field was no longer depicted on the November 1968 Des Moines Sectional Chart (according to Chris Kennedy).
By the time of the 1974 USGS topo map,
the site of the original Council Bluffs Airport had been covered by a new intersection of Interstate 29 & Route 92.
A 1990 USGS aerial photo of the site of the original Council Bluffs Municipal Airport.
It appears as if at least 2 original airport buildings were still remaining standing at the northwest corner of the site.
the "ghosted" outline of at least 2 runways were still recognizable.
However, it appeared as if the larger of the 2 remaining airport buildings (on the northwest corner of the site)
had been removed at some point between 1990-2002.
A 2006 aerial view of the site of the original Council Bluffs Airport, annotated by Chris Kennedy to show the location of the 5 former runways.
It appeared as if one small building remained on the northwest corner of the site.
Dick Davis reported in 2006, “Council Bluffs' original airfield is under construction for another Big Box shopping area.”
A circa 2006 aerial view showed that the ground on the northwest corner of the site of the former airport had been newly scraped clean,
with the former building having been removed,
eliminating any trace of the original Council Bluffs Airport.
The site of the original Council Bluffs Airport is located west of the intersection of Interstate 29 & Route 92.
Thanks to Chris Kennedy for pointing out this airfield.
____________________________________________________
Linby Naval Outlying Landing Field, Pekin, IA
41.15 North / 92.17 West (Southeast of Des Moines, IA)
An April 26, 1943 plat for OLF # 07815 / Auxiliary Field #6 (Ottumwa) (courtesy of Brian Renhwinkel).
Photo of the airfield while in use has not been located.
This airfield was one of 15 satellite airfields used during WW2 by Naval Air Station Ottumwa,
which conducted primary flight training from 1942-47.
The date of construction of Linby NOLF is unknown.
The earliest depiction which has been located of the field was an April 26, 1943 plat
for OLF # 07815 / Auxiliary Field #6 (Ottumwa) (courtesy of Brian Renhwinkel).
It depicted the field as having 4 paved runways, oriented in a square.
Brian reported, “According to information I gathered at the National Archives,
the field was originally planned to be more extensive - the mat would have been much larger.
The plans were scaled down 'due to the excessive costs involved in completing the hard surface runways originally planned'
and the final result was what you see today - four 2,000’ x 200’ concrete runways.
The field was acquired in February 1943.
The construction of the runways took place in 1943 - probably during the summer.
The site consisted of approximately 360 acres.
It was acquired from several land owners for approximately $67,000
and the final costs for construction (I found another figure) was approximately $392,000.”
Brian continued, “The plat plan doesn’t show too much detail, but it does have 'dotted' lines
depicting the 4” drainage tiles laid out to evacuate water from the site.
Drainage was apparently a pretty big deal at this field.
According to an August 1943 project report from the Navy’s Bureau of Yards & Docks, 17,720 linear feet of drain was laid at the field.”
It was not listed among active airfields in the 1944 US Army/Navy Directory of Airfields (courtesy of Ken Mercer).
The earliest aeronautical chart depiction of the Linby airfield which has been located

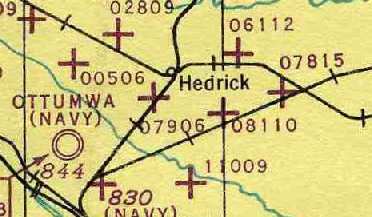

was on the 1945 Regional Aeronautical Chart (courtesy of Chris Kennedy).
It was labeled simply as auxiliary airfield "07815",
which indicated the bearing (075 degrees) & distance (15 miles)
of the auxiliary field from the parent Naval Air Station, Ottumwa.
What was known at the time as Navy Field 07815
was still depicted as an active airfield on the 1948 Des Moines Sectional Chart (courtesy of Chris Kennedy).
"Linby OLF (Navy)", as depicted on the June 1955 Des Moines Sectional Chart (courtesy of Chris Kennedy).
The Linby airfield was evidently closed by the military at some point between 1948-55.
Although "Linby OLF (Navy)" was depicted as an active airfield
on the June 1955 Des Moines Sectional Chart (courtesy of Chris Kennedy),
the remarks on the Aerodromes table on the chart said "Closed".
The full name in the table was given as "Linby OLF 17 (Navy)",
and the field was described as having 4 runways,
with the longest being an 1,998' concrete strip.
The Pekin Community School was eventually built along the eastern edge of the abandoned runways.
Amazingly, the 4 concrete runways were not depicted at all on the 1978 or 1980 USGS topo maps.
Kevin Hadley recalled, "I am a graduate of Pekin Community School District attending all 13 years graduating in 1979.
The original High School was built on the airfield & began classes in the fall of 1961.
It is local legend that the airfield had very little use due to wind currents causing landing problems.
Hence the field was sold shortly after WW2 to the newly consolidated Pekin School district.
As I remember, the sale required the runways not be removed
as the government wanted the availability to use the airstrips at some point in the future.
While a student at Pekin, another student used to land on the airstrip to attend baseball practice.
And, I never remember us having a parking problem!"

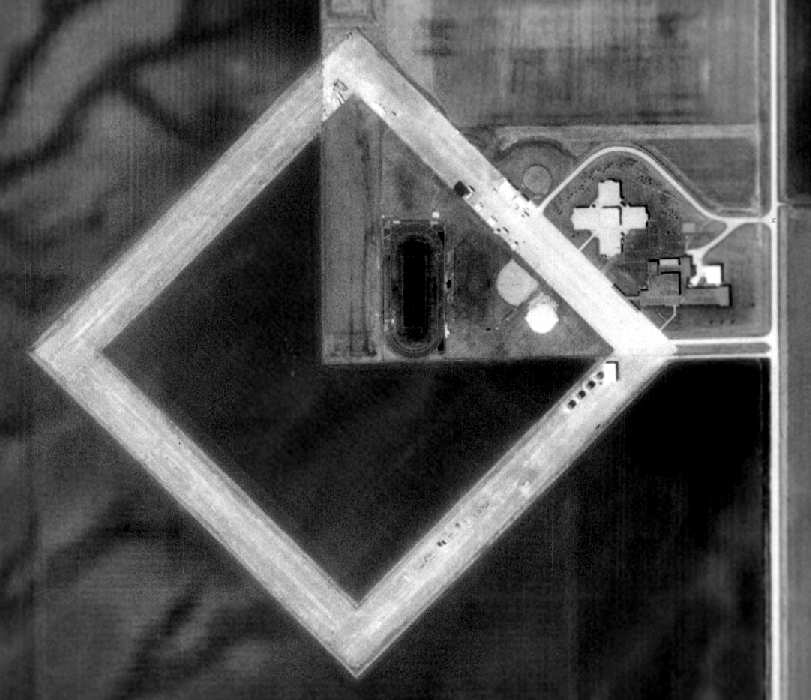

As of the 1990 USGS aerial photo, the Linby airfield consisted of four 2,000' paved runways, arranged in a square.
It was not evident if there were originally any buildings at the airfield.

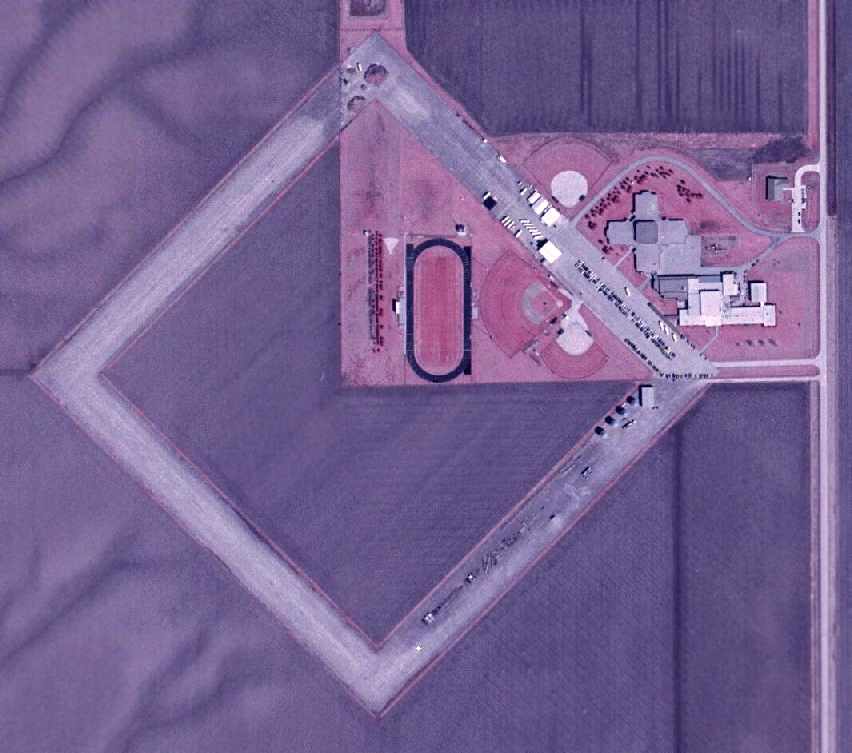

A 2002 aerial photo of the Linby NOLF site, from the Iowa Geographic Map Server (via Chris Kennedy).
The former Linby airfield, as depicted as an abandoned airfield on the 2003 Sectional Chart.
The site of Linby NOLF is located west of Birch Avenue, one mile south of the town of Pekin.
Thanks to Chris Kennedy for pointing out this airfield.
____________________________________________________
